1064QCCL Q-Switched Nd:YAG Laser Pigment Lesions Tattoo Removal Vertical Machine

1064qcclmainpicture01
  • 1064qcclmainpicture01
  • 1064qcclmainpicture02
  • 1064qcclmainpicture03
  • 1064qcclmainpicture04

Short Description:

1064QCCL
Active 1064nm & 532nm Q-switched ND: YAG Laser
Pigment lesions & tattoo removal
Age spot/Chloasma(Melasma)/Freckles
Skin rejuvenation with carbon powder


Product Details

Specification

Before & After

1064QCCL Q-Switched Nd:YAG Laser Pigment Lesions Tattoo Removal Vertical Machine

1064QCCL Q-Switched Nd:YAG Laser Pigment Lesions Tattoo Removal Vertical Machine

Treatment Theory

The Q-switched Nd:YAG laser radiates the light with a specific wavelength in high peak energy pulses, hence the light penetrates into the tissue only for a nanosecond. The light is absorbed by the pigmentation and results in an instantaneous blast, that is Light blasting principle. The pigmentation particles are shattered into fragments, some can be bounced out of the skin and others can be split into tiny particles that can be engulfed by phagocytes and then eliminated by the lymphatic system.

1064QCCL Q-Switched Nd:YAG Laser Pigment Lesions Tattoo Removal Vertical Machine

Application

Tattoo ( black, brown, red, blue,etc.)
Pigmented lesions : Sunspot,Ota’s nevus, Melasma ,Age spots, Calms Nevus Zygomatices
Laser facial : Skin rejuvenation and resurfacing, fine wrinkles and expression lines removal, pigmentations reduction such as sunspots and freckles firms up skin tone.

1064QCCL Q-Switched Nd:YAG Laser Pigment Lesions Tattoo Removal Vertical Machine

1064QCCL Q-Switched Nd:YAG Laser Pigment Lesions Tattoo Removal Vertical Machine

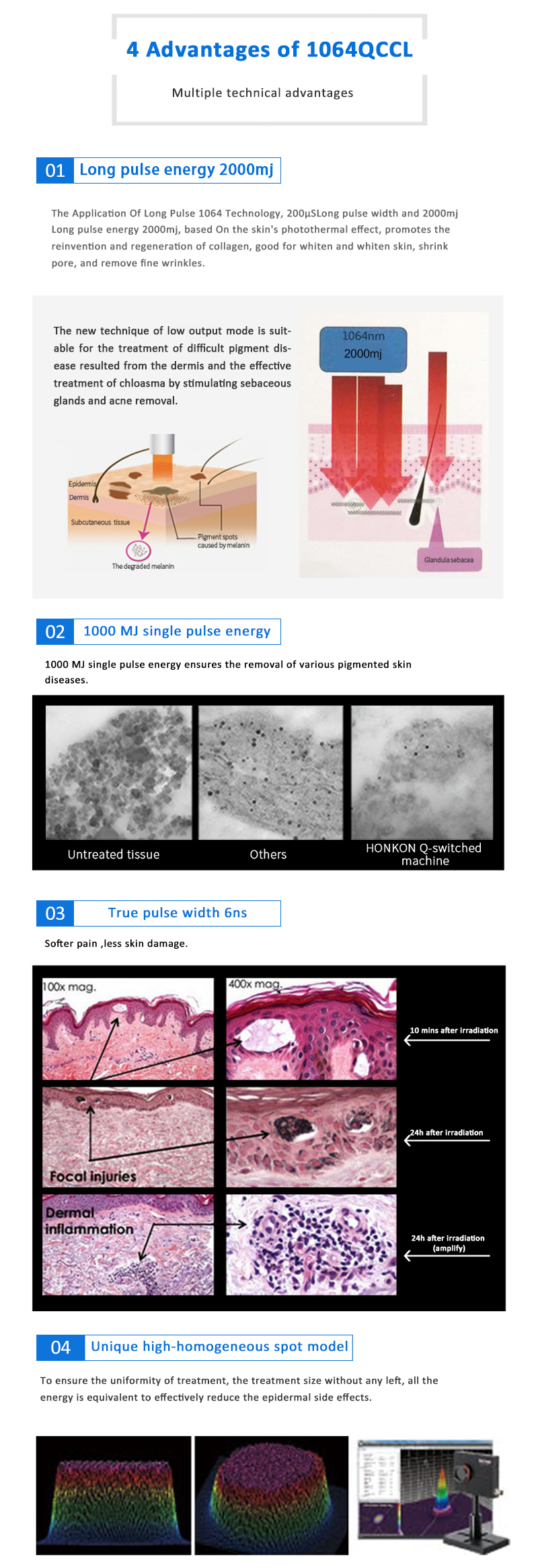

Features & Advantages

1. 7 joint articulated arm: 360 treatment without dead angle and ensure the highest energy output minimum energy loss during laser transmission
2. High peak power(single pulse energy 1200mj): High single pulse energy means strong ability to crush the pigment to make it bane of full range of pigmentations
3. High quality laser source(USA imported): High quality and performance machine can continuously work around the clock
4. Short pulse width (6ns): Efficient destruction of the target pigment with minimal collateral thermal damage meeting the criteria of selective photothermolysis

1064QCCL Q-Switched Nd:YAG Laser Pigment Lesions Tattoo Removal Vertical Machine

1064QCCL Q-Switched Nd:YAG Laser Pigment Lesions Tattoo Removal Vertical Machine

Videos


Model name: 1064QCCL

Laser type Q-Switched ND:Yag Laser
Wavelength 1064nm & 532nm
Single pulse energy

≤1000mj@1064nm

≤500mj@532nm

Pulse width 6ns
Spot mode High uniform spot
Spot diameter 2-10mm adjustable continuously
Frequency 1-10hz
Long pulse width 200μs
Long pulse energy 500mj,1000mj,1500mj,2000mj
Light indicator Red light
Articulated arm mode South Korea original
Power supply AC110V/220V±10%,50Hz-60Hz
Dimensions(packaged) 95*45*120cm³
Gross Weight 90kgs
