S3C IPL/OPT/SHR Suction Hair Removal Skin Rejuvenation Pigmentation & Vascular Lesion Machine

s3cmainpicture02
  • s3cmainpicture02
  • s3cmainpicture05
  • s3cmainpicture01
  • s3cmainpicture03
  • s3cmainpicture04
  • s3cmainpicture06

Short Description:

S3C
IPL/E-light(IPL+Bipolar RF)/OPT
Hair removal/ skin rejuvenation/acne removal
Pigment lesions / vascular lesions

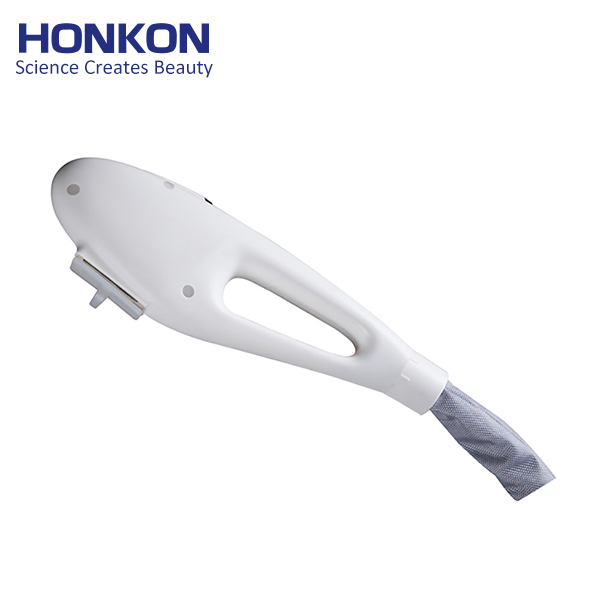

One filter changeable handle with five filters(8mm*40mm)

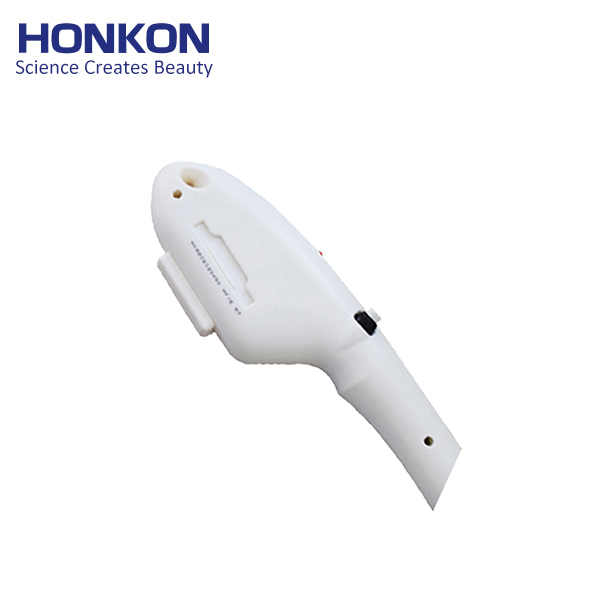

One suction handle for hair removal(8mm*40mm)


Product Details

Specification

Before & After

S3C IPL/OPT/SHR Suction Hair Removal Skin Rejuvenation Pigmentation & Vascular Lesion Machine

S3C IPL/OPT/SHR Suction Hair Removal Skin Rejuvenation Pigmentation & Vascular Lesion Machine

Treatment Theory

S3C adopts the suction OPT technology and double safety mode, combined with the application selective light and heat principle of LPL which strengthen the effect of the rejuvenation, freckle and hair removal and realize skin reconstruction and hair removal without obvious pain and side effect during treatment. leading the E-light instrument into a safer, more efficient and painless suction OPT century.

S3C IPL/OPT/SHR Suction Hair Removal Skin Rejuvenation Pigmentation & Vascular Lesion Machine

Applications

1. Hair removal

2. Acne removal

3. Vascular Lesion removal

4. Skin rejuvenation: Pores shrinking, superficial wrinkle, skin texture improvement

5. Pigment: Freckle, lentigo, age spot with spot-like

 S3C IPL/OPT/SHR Suction Hair Removal Skin Rejuvenation Pigmentation & Vascular Lesion Machine

Features & Advantages

1. Innovative OPT technology, ensures the stable energy output for every pulse, which brings the safe and painfree experience for customer.
2. Unique Vacuum assisted technology, brings more effective clinical result.
When skin is sucked into the socket, then the density of melanin and hemoglobin are reduced, which greatly reduce the competitive absorption of hemoglobin. Thus more energy targets on melanin directly, so the treatment result is doubled than before. At the same time, the vacuum will temporary compress the nevus ending, so reduce the sensitivity, thus realize the real pain free treatment during treatment.
3. Friendly interface, easy for operator.
4. 2 handpieces, flexible combination, bring the most effective treatment
5. SHR frequency 1-10 Hz

S3C IPL/OPT/SHR Suction Hair Removal Skin Rejuvenation Pigmentation & Vascular Lesion Machine

S3C IPL/OPT/SHR Suction Hair Removal Skin Rejuvenation Pigmentation & Vascular Lesion Machine


Model name : S3C

Filter wavelength HR 610-1200nm
SR 530-1200nm
VR 585-1200nm
PR 560-1200nm
AR 430-1200nm
Energy density 10-50J/c㎡
Spot size 8mm*40mm/15mm*60mm/10mm*10mm

1st-pulse width
Sub-pulse width

 0.1-10ms
1st pulse interval
Sub-pulse interval
0.1-10ms
Pulse number 1-5T
Frequency(SHR mode) 1-10Hz
RF enery 5-50w
RF time 1-4s
RF interval 2-4s
RF frequency 2.64MHz
Cooling mode Air + water + semi-conductor cooling
Power supply AC110/220V±10%,   50Hz-60Hz,10A
Package dimension 78*50.5*142cm³
Gross weight 60kg

S3C Before and after
